| 브랜드 이름: | WONDERY |
| 모크: | 1 |
| 가격: | $60,000 |

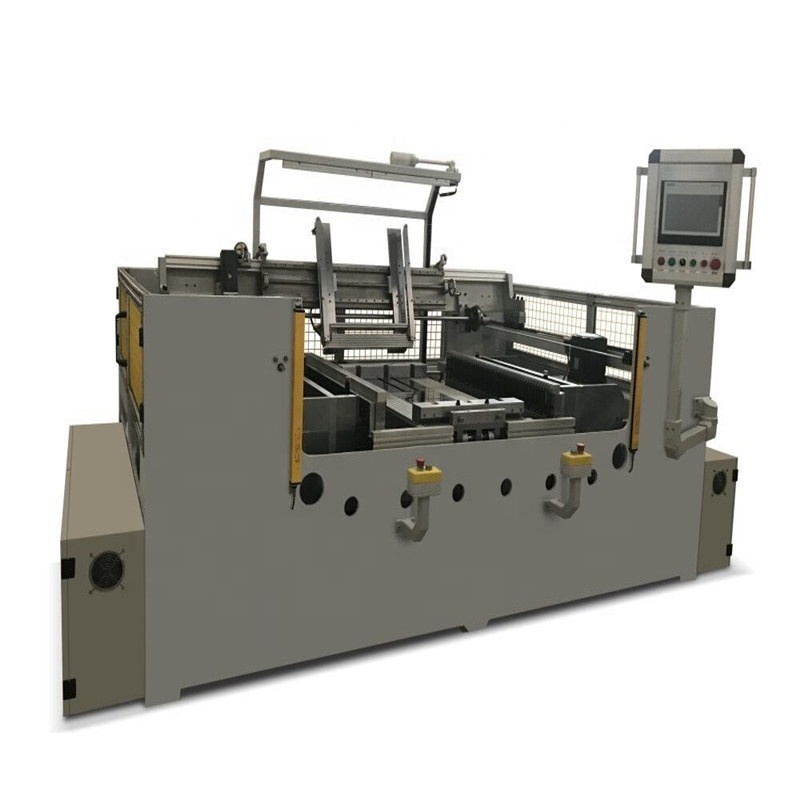

The semi-automatic parallel flow core condenser making machine is designed for assembling auto parallel flow condensers with precision and efficiency.
This condenser core builder machine assembles parallel flow condensers with stable performance, easy operation, and low noise. It ensures accurate flat tube positioning and even fin distribution, resulting in cores with high assembly accuracy and excellent appearance for optimal brazing results.
| Parameter | Specification |
|---|---|
| Core height direction | 350-780mm |
| Core width direction | 200-680mm |
| Flat Tube Layers | 1 layer |
| Tube Laying Mode | Manual |
| Fin Laying Mode | By fin tray / Manual |
| Production Capacity | Around 40 sets/hour |
| Drive Mode | Pneumatic |
| Overall Dimension | 2200×1800×1800mm |
| Weight | 2200kg |
The machine can be equipped with a tube distribution silo to enhance operational efficiency.
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines specializing in equipment for automotive, HVAC, and heavy industries. Established in 2008, we offer comprehensive solutions including:
We export worldwide and provide full technical support including installation, training, and maintenance services.
